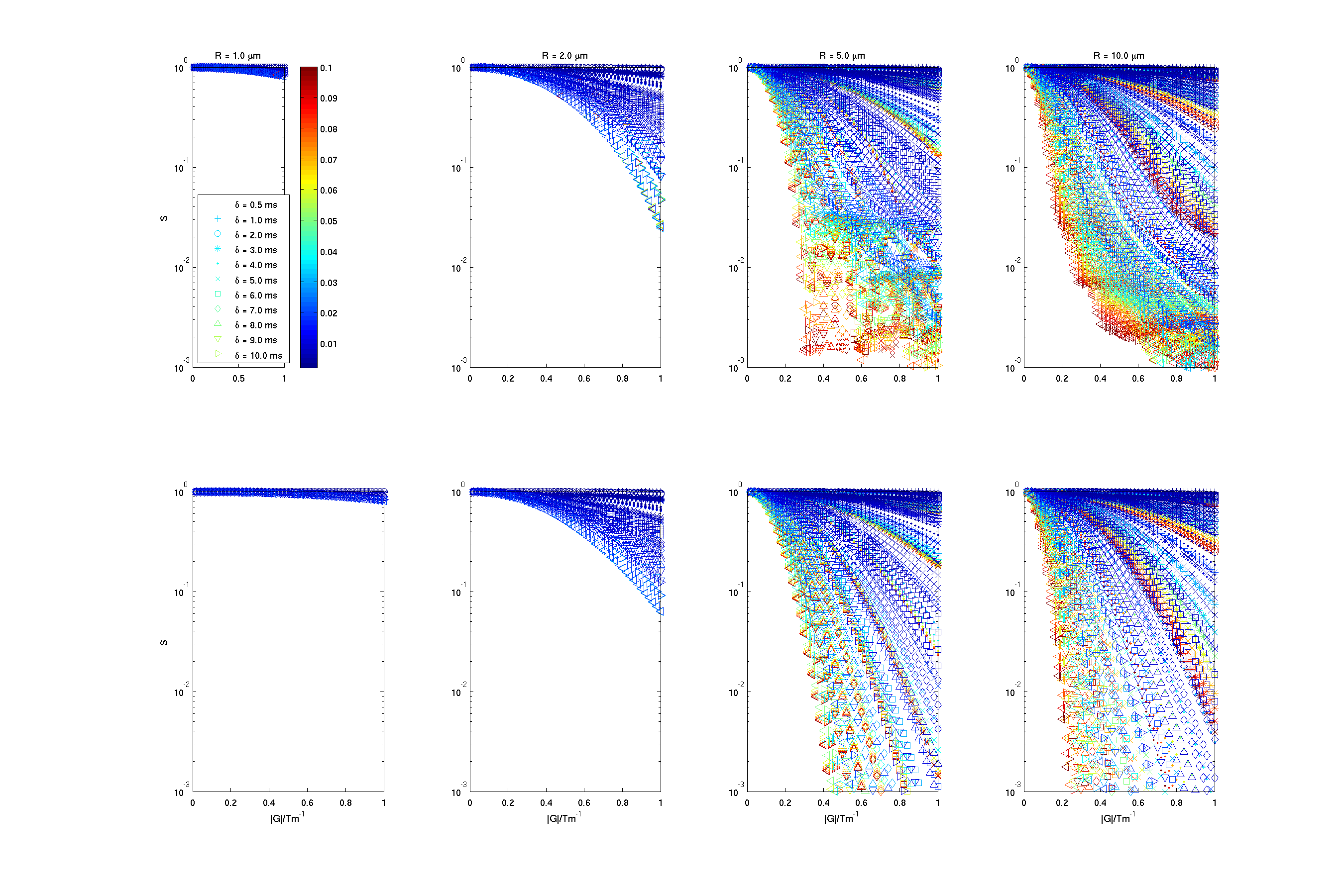

Figure 1. Plots synthetic signals against gradient strength for each combination of \delta and \Delta. The marker distinguishes the different settings of \delta, as the legend shows, and the colour indicates \Delta, as the colour bar shows. From left to right the signals come from spins inside cylinders with radii 1, 2, 5 and 10 microns. The top row shows the signals from the Monte-Carlo simulation and the bottom row shows the signal from the GPD approximation.
